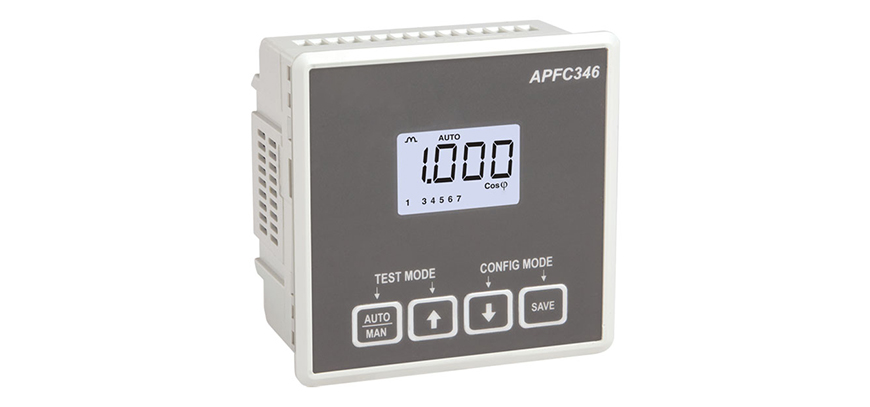

Automatic Power Factor Correction (APFC) Controllers

An Automatic Power Factor Controller (APFC) is an intelligent electronic device that maintains an optimal power factor (near 1.0) in electrical systems by automatically switching capacitor banks on and off based on load requirements. It boosts energy efficiency, prevents penalties from utilities, and reduces strain on equipment, making it ideal for industrial and commercial loads.

Why are APFC Controllers so important?

APFC controllers automatically adjust capacitor banks to maintain an optimal power factor, which eliminates penalties imposed by utility companies for low power factor. By increasing the efficiency of the power supply system and reducing reactive power demand, they reduce overall electricity consumption. They minimize heating in motors, transformers, and cables, reducing stress on electrical infrastructure and preventing premature failure.

Key Aspects of APFC Controllers

• Stages: Available in various stages, typically 6, 8, 12, or 16, which define the number of capacitor banks it can control.
• Sensing: Uses Current Transformers (CT) to monitor, with options for 1-CT or 3-CT sensing to manage balanced or unbalanced loads.
• Typical Applications are Industrial Plants - Managing induction motors and large machinery, and Commercial Buildings - Offices, hotels, and shopping complexes.
• Display: Features LCD or LED displays for real-time monitoring of voltage, current, power factor, and kVAR.
