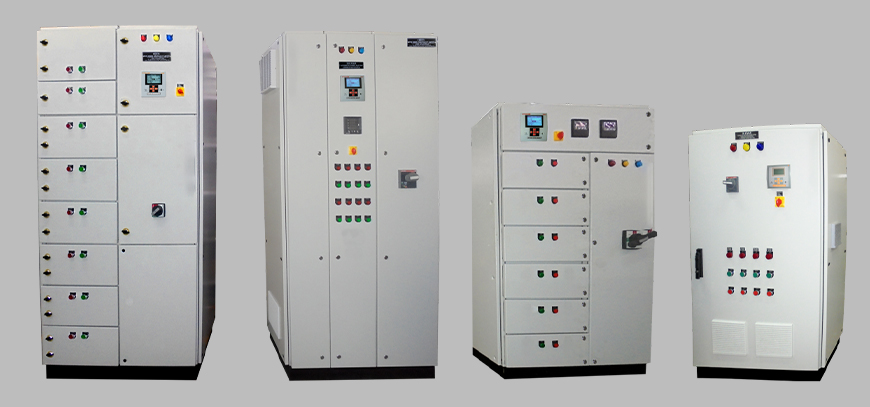

Automatic Power Factor Correction (APFC) Panels

An Automatic Power Factor Control (APFC) panel is an electrical system used to improve the power factor—the ratio of useful power to total power—by automatically switching capacitor banks on and off. It monitors loads to maintain a power factor near 1.0, reducing electricity bills, avoiding utility penalties, and decreasing energy losses.

Why are APFC Panels so important?

Automatic Power Factor Correction (APFC) panels are crucial for maintaining a high power factor (close to unity) in industrial electrical systems, directly reducing electricity bills by avoiding utility penalties. They automatically manage reactive power, reducing energy waste, lowering operating costs, and extending the lifespan of machinery by optimizing voltage levels.

Key Aspects of APFC Panels

• Purpose: Improves power factor (PF), reducing energy consumption and boosting efficiency.
• Working Principle: A microcontroller-based relay constantly monitors the load's power factor and switches capacitor banks to match the needed reactive power (kVar).
• Components: Microcontroller relay, capacitors, contactors/thyristors, and protection devices.
• Application: Primarily used in industries, commercial buildings, and LT/HT substations with fluctuating loads.
• Key Benefits: Lowers power consumption costs, reduces demand charges, increases system capacity, and improves voltage stability.
